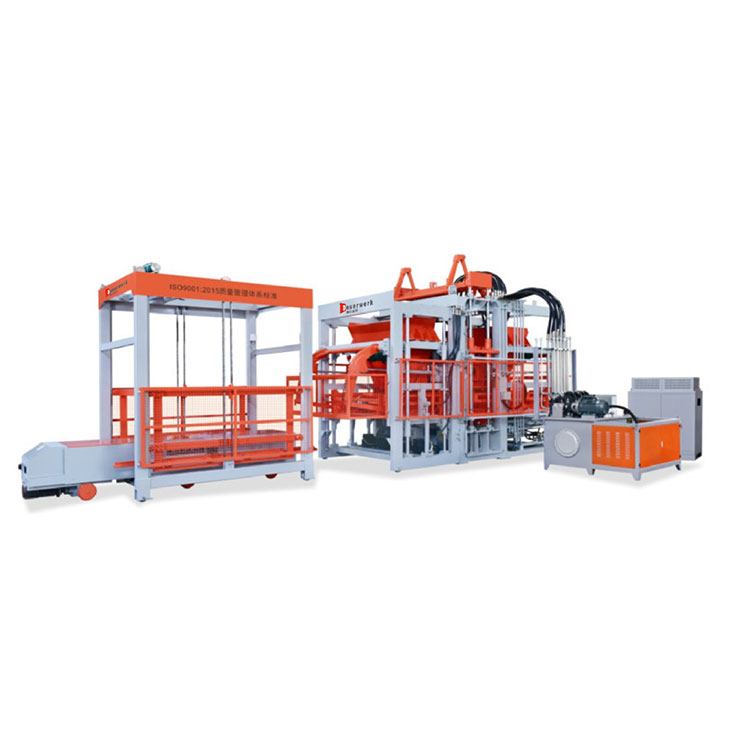

QT8 Automatic Concrete Block Making Machine
Product Description

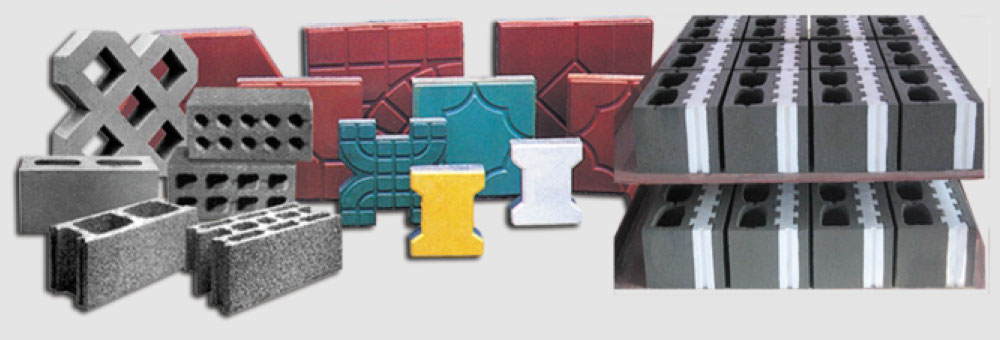

Main product specifications
| Specifications BLOCK SIZE | Number of molding blocks (blocks/mold) PCS | Molding cycle (seconds/mold) CYCLE (SEC) |
| 240x115x 53 | 42 | 15-20 |
| 390x 190x 190 | 8 | 15-20 |
| 240x115x 90 | 18 | 15-20 |
| 150x 100x 100 | 32 | 15-20 |
| 190x 190x 190 | 1 6 | 15-20 |
| 200x 100x 60 | 28 | 20-25 |
| 200x 200x 60 | 12 | 20-25 |
Main parameters
| MACHINE SIZE | 3200×2510×2750 (mm) | POWER OF MACHINE | 53.9 (kw) |
| PRODUCTION AREA | 1050×800 (mm) | VIBRATION POWER | 75-110 (KN) |
| CYCLE TIME | 15-20 (s) | REQUIRED FACTORY AREA | 900 (m2 ) |
| PALLET SIZE | 900×900×25/30 (mm) | POWER REQUIRED(KW) | 125 (KVA) |
| MACHINE WEIGHT | 11.8 (T) | Mixer model MIXER | JS750 |
