DW-1200 Low Position Hole Palletizer
The machine is equipped with a marshaling mechanism which can organize cement bricks into suitable specifications for loading, such as (900-1200mm). The bricks are pushed and grouped in a mechanical channel to achieve packing and leaving holes. It has relatively low requirements on the strength, shape and mold of cement bricks and has a relatively high overall applicability. The finished products can be packed and stacked with holes or transported by wooden brackets holding brick clamps.Product Description
Product Description
With a marshaling mechanism, cement bricks can be marshaled into specifications suitable for loading, such as (900-1200mm). The bricks are pushed and marshaled in the mechanical channel to achieve packing and leaving holes. The strength, shape and mold requirements of cement bricks are relatively low, and the comprehensive applicability is relatively high. The finished products can be packed and stacked with holes or transported by wooden brackets holding bricks.
Main technical parameters
| Floor area of the whole set | 12000x 10000 x 3000(mm) |
| Total weight | ~9T |
| Brick size | 1000x 1000/1200x 1200(mm) |
| Operation cycle | 15-18 seconds/layer |
| Total power | 22Kw |
| Maximum stacking size | 1200(mm) |

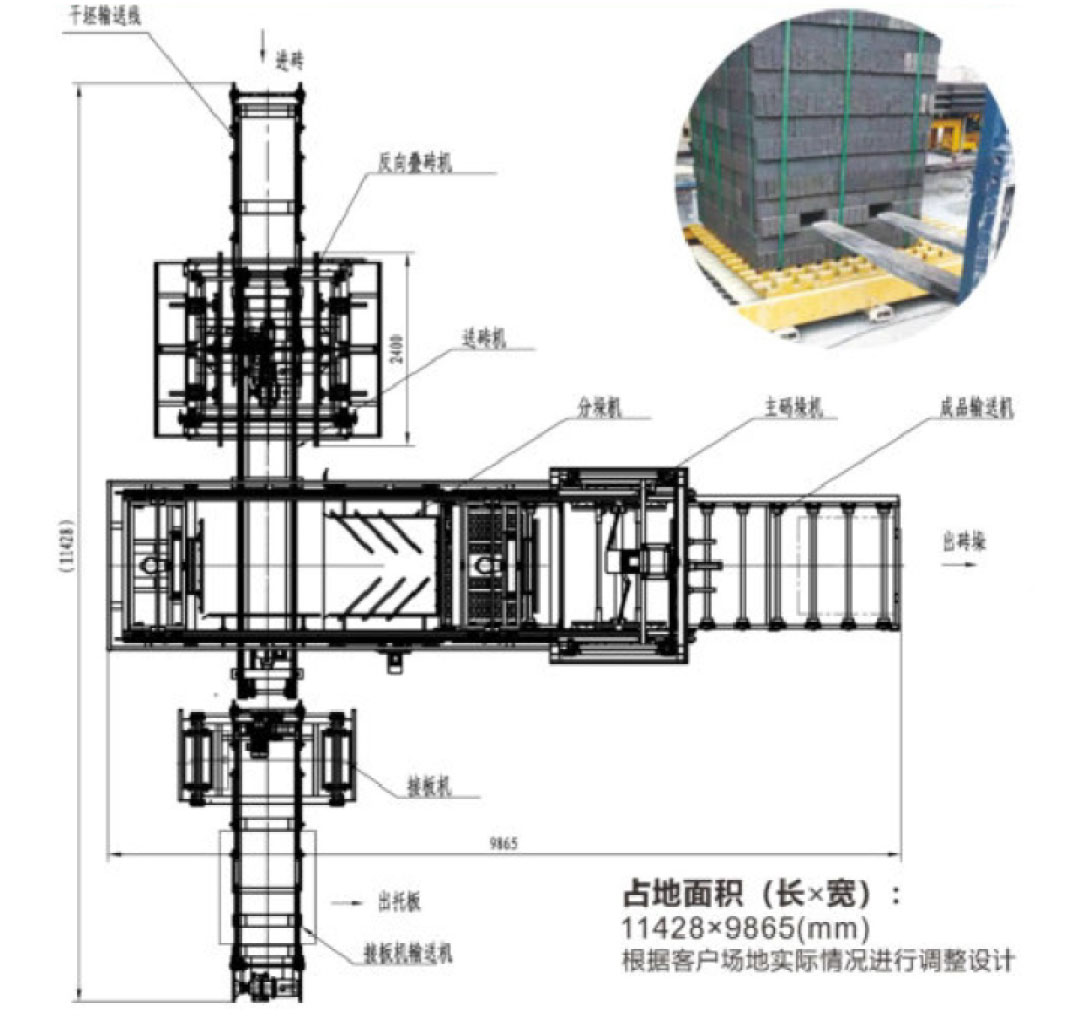

Site layout
