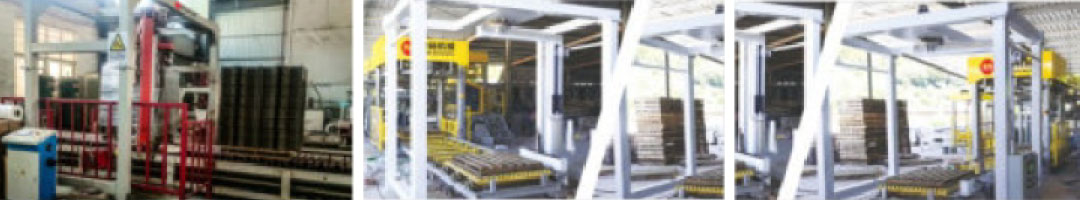

Fully automatic upward winding film baling machine
Product Description
Main technical parameters
| Packing size | (500-1200)mm x (500-1200) x 2200mm(LxWxH) | Lifting parts | Chain guide lifting mechanism, lifting speed variable frequency adjustable |
| Cantilever speed | 0-20RPM adjustable | Conveying system | Conveying line height: 400mm. Speed: 8-15mm. Load-bearing capacity: 2000kg |
| Packaging efficiency | ≥25 pallets/h | Control system | PLC control, adjustable parameters, adjustable lamination length, automatic sensing of cargo size |
| Film rack system | Electric pre-stretched film, stretch ratio up to 250%, adjustable speed frequency conversion | Motor power | Cantilever: 1.1kw; mold frame: 0.37kw: lifting component: 0.37kw. Top lamination: 0.37kw |
| Automatic film cutting device | Automatic clamping, cutting film, no tailing, completely unmanned automatic completion | Power supply | 4KVA/AC380V /50Hz, 3PH/N/PE |
| Top film | PE/PVC film, width 1 800mm, diameter 100-300mm, thickness 30-1 00mm | Air source | 0.4-0.6mpa, 350NL/min |
| Wrap film | LLDPE stretch film, width: 1 800mm, thickness: 20- 35mm | Equipment size | 4500x 2200x 3500mm (LxWxH) (depending on actual situation) |
